Jcode MCP Server: Setup, Diagnostics and Tested Fixes

Refreshed and tested 16 October 2026 · Jcode v0.98.1 (1c7426eb1) · macOS arm64. I tested local stdio servers. The work item’s v0.89 reference is historical; I used the latest stable release available when I checked.

I use MCP to give Jcode tools supplied by a separate server. I check three things independently: which configuration was loaded, whether the server completed initialization, and whether an actual tool call succeeded. Seeing a server name in a list answers only the first question.

Where I put and check MCP configuration

I confirm the effective names with jcode mcp list. The release’s configuration loader defines source merging and environment expansion. If two files define the same name, I inspect both rather than assume the file I just edited won.

A minimal stdio entry has this shape. I replace the example path and arguments with the real server’s instructions; this placeholder command is not an installed server.

{
  "mcpServers": {
    "my-server": {
      "command": "/absolute/path/to/server-executable",
      "args": [],
      "env": {},
      "timeout_secs": 30
    }
  }
}

Transport correction: current Jcode includes stdio, Streamable HTTP and legacy SSE support, plus explicit remote OAuth commands. The earlier stdio-only claim on this page is outdated. I verified stdio here; I did not test a remote server or OAuth login. I use the versioned MCP command implementation and transport client to distinguish supported features from my local test coverage.

My practical MCP diagnostic sequence

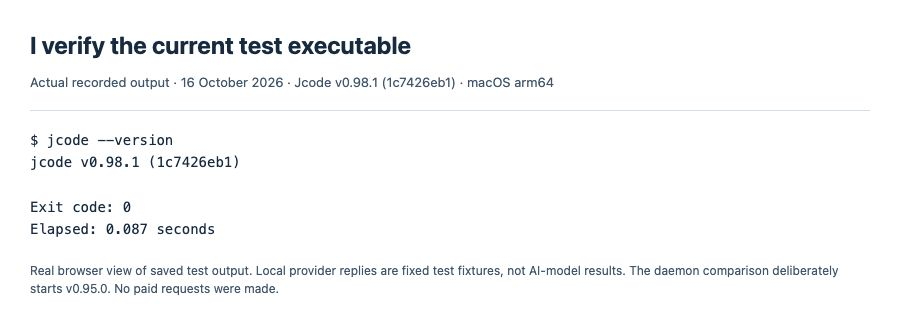

1. I update and record the exact version

jcode --version
jcode update
# Restart the client, then verify the version:
jcode --version

I compare against the official v0.98.1 release. My tests use a separate SHA-256-verified release copy. I check the updater’s result and the running daemon too; updating an executable does not, by itself, prove every existing process uses it.

→

2. I list configuration, then test one server

jcode mcp list
jcode mcp test my-server

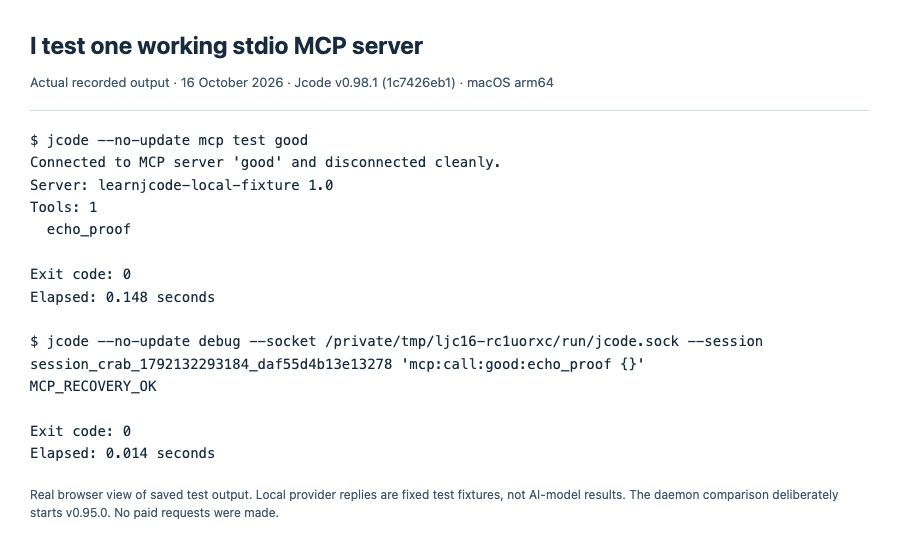

I replace my-server with a name from the list. Listing does not connect; mcp test connects once, reports server information and tool names, then disconnects. It does not invoke a tool. In my working fixture, this connection check took 0.148 seconds. I separately called its harmless echo tool and received MCP_RECOVERY_OK.

→

3. I read the failure cause before changing authentication

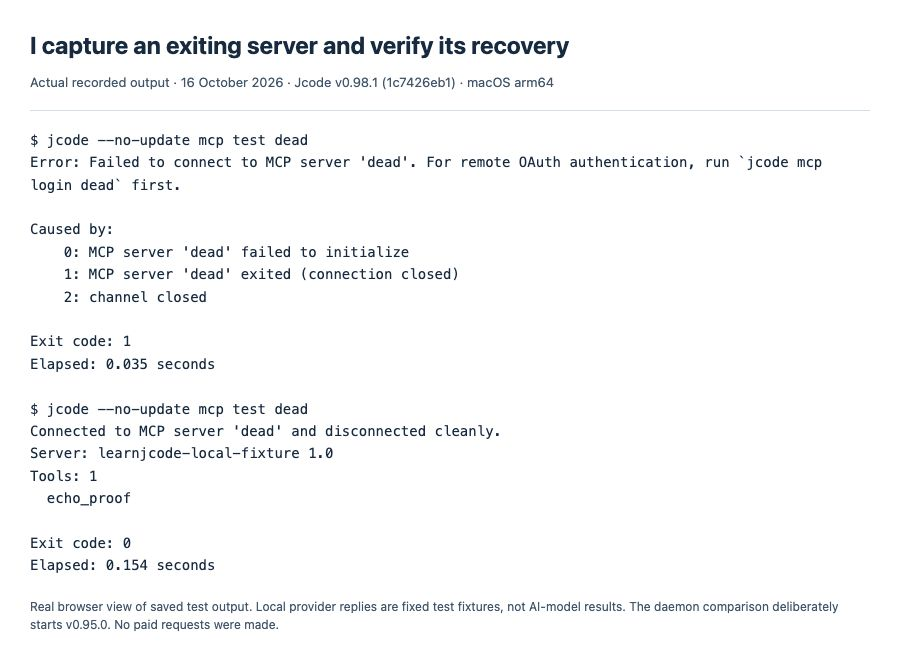

My deliberately broken fixture wrote a diagnostic to stderr and exited before answering initialize. Even with timeout_secs: 86400, current Jcode detected the closed connection in 0.035 seconds and exited with code 1. It did not wait a day.

MCP server 'dead' failed to initialize
MCP server 'dead' exited (connection closed)
channel closed

The error wrapper also mentions remote OAuth. I follow the actual cause: this server uses stdio and has exited, so a remote login is not its repair. I check its executable, arguments, runtime dependencies and stderr. For stdio, I keep diagnostics off stdout because stdout carries protocol messages.

My verified repair: I changed that fixture’s command arguments to start its working mode, then ran jcode mcp test dead again. It connected, listed the echo tool and disconnected cleanly in 0.154 seconds.

→

4. I distinguish silence from an exited process

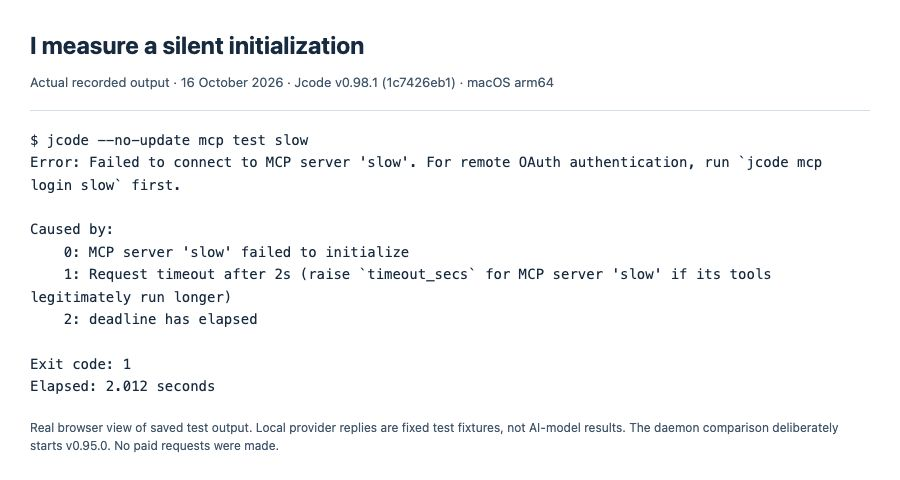

Another fixture stayed alive but never answered initialization. With its timeout set to two seconds, mcp test slow failed in 2.012 seconds. I check whether the process is waiting for input or blocked on a dependency before increasing its budget.

→

5. I raise only a genuinely slow server’s timeout

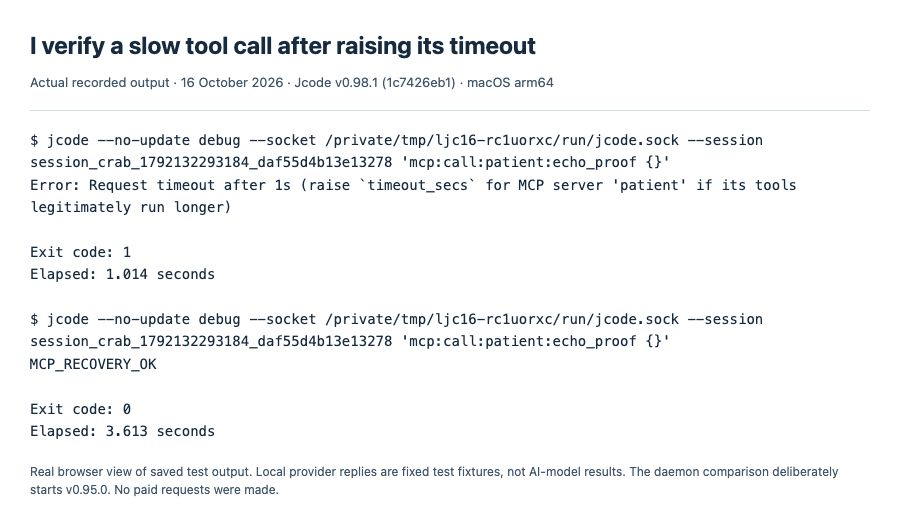

I used a fixture that initialized normally, then took three seconds to answer a tool call. With timeout_secs: 1, the call failed in 1.014 seconds and named the server and setting in the error. I changed that server’s value to 5, reloaded MCP, and repeated the same call. It returned MCP_RECOVERY_OK in 3.613 seconds.

"timeout_secs": 5

I change this field inside the existing server object, preserving its command, arguments and environment. In my test I used the debug mcp:reload operation; in a normal session I ask Jcode’s MCP management tool to reload, or start a fresh session. I then repeat the actual small tool call. A successful configuration reload alone is not the final check.

→

6. I measure startup instead of assuming it is always instant

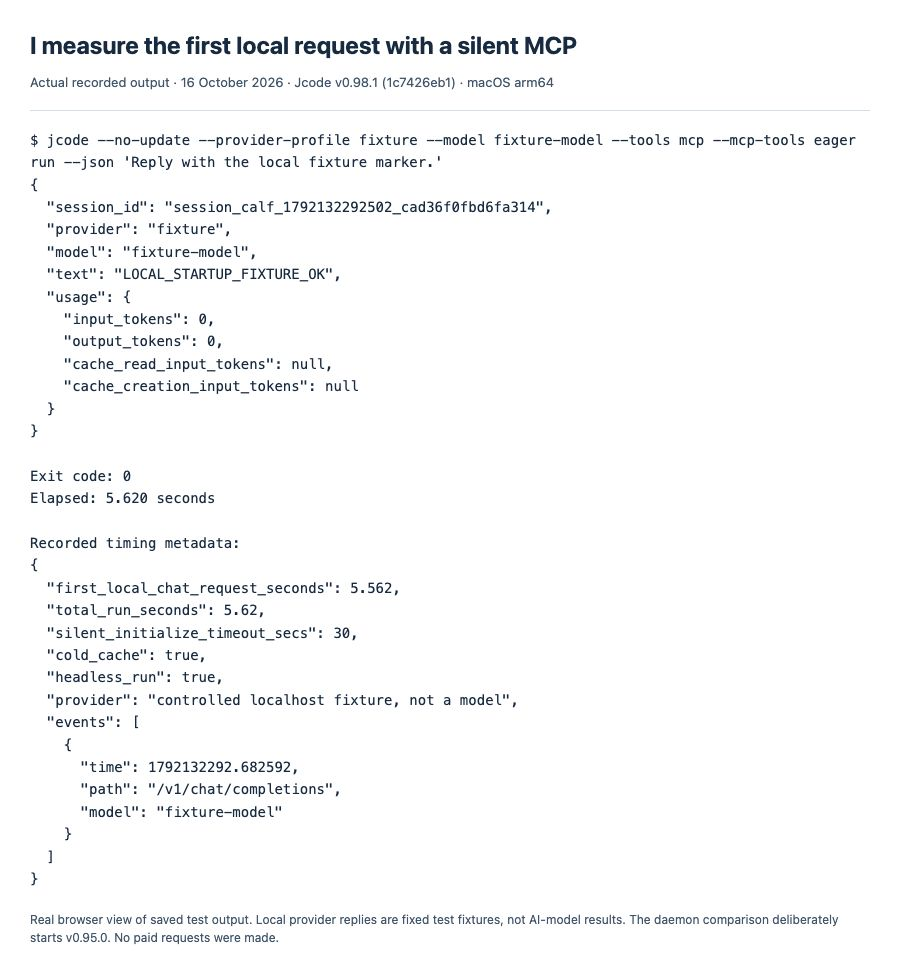

I ran headless Jcode with a cold MCP cache, one working server and one silent server configured for a 30-second initialization timeout. My first controlled local chat request arrived at 5.562 seconds; the entire run took 5.620 seconds. It did not wait the full 30 seconds in this test, but there was a measurable startup wait.

→

The versioned headless startup path includes a bounded cold-cache wait. I keep that separate from initialization timeouts and later tool-call timeouts. This test used a local HTTP fixture returning a fixed marker, not a hosted AI model, and does not establish TUI timing or reproduce a particular remote server.

Historical reports I do not present as current failures

I return to the errors hub for other MCP symptoms and the current provider troubleshooting guide when the failure occurs at the model endpoint instead of an MCP server.

Evidence and limits: I used isolated Jcode configuration and local controlled fixtures, with telemetry disabled and no real hosted credentials. Screenshots are genuine browser captures of saved test output. Arrows occupy a separate outside margin; the original image pixels are preserved. Full streams, protocol traces, results and fixture code are retained locally. These are individual measured runs, not general latency guarantees.
